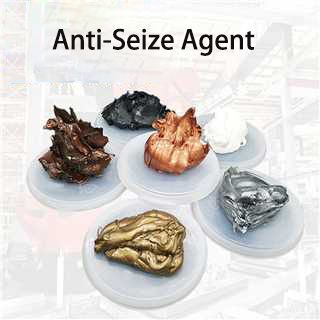

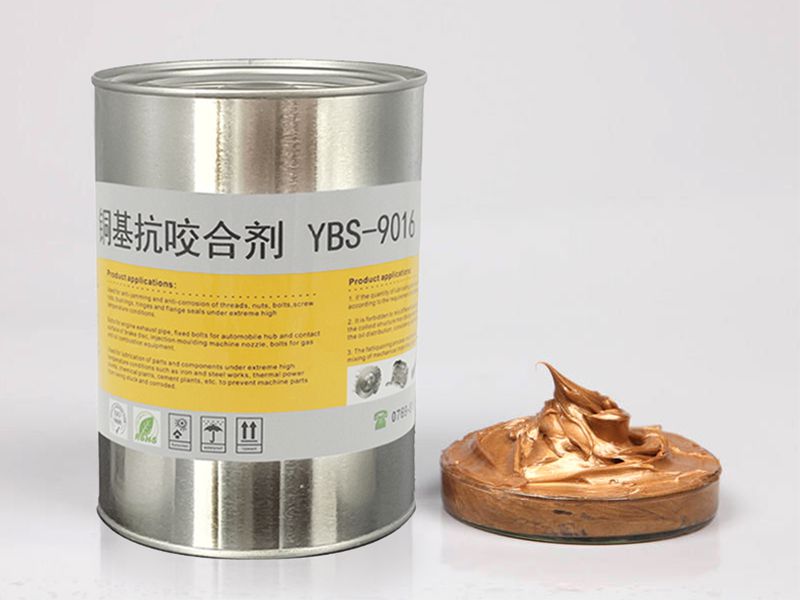

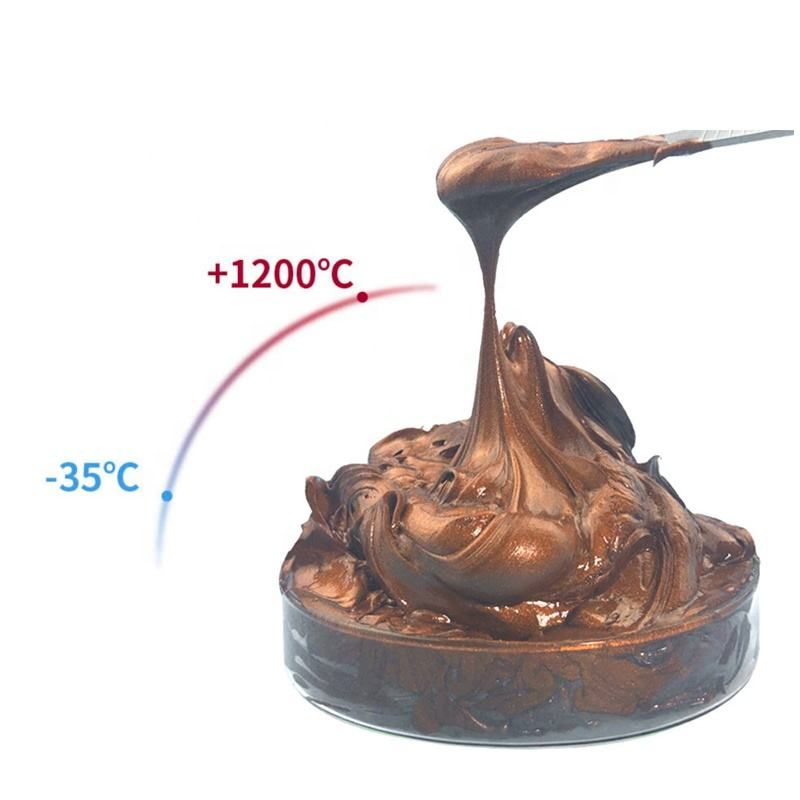

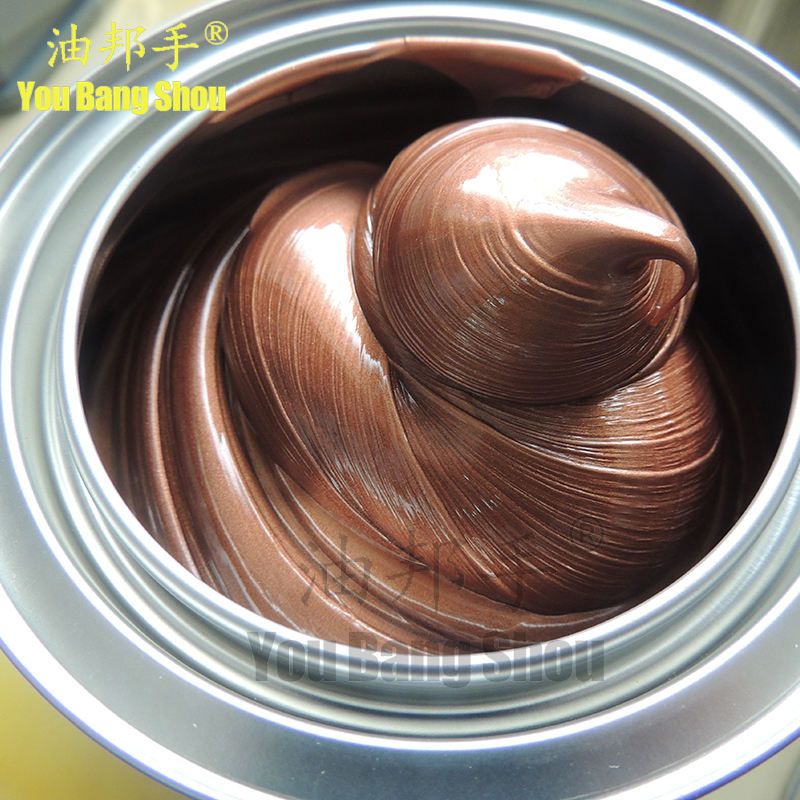

You Bang Shou® Copper Paste
You Bang Shou® series anti-seize agent is the use of imported composite lithium soap as a thickener, high viscosity base oil, selected copper powder and other high temperature solid lubricant additives after special preparation. In the high temperature, humidity, dirty and corrosion and chemical erosion and other high operating environment, has excellent thread bolts and buckles of adhesion and anti-seize, can prevent metal scraping and tight erosion, corrosion prevention, wear resistance, resistance to heavy loads, can resist 1400 ℃ high temperature.

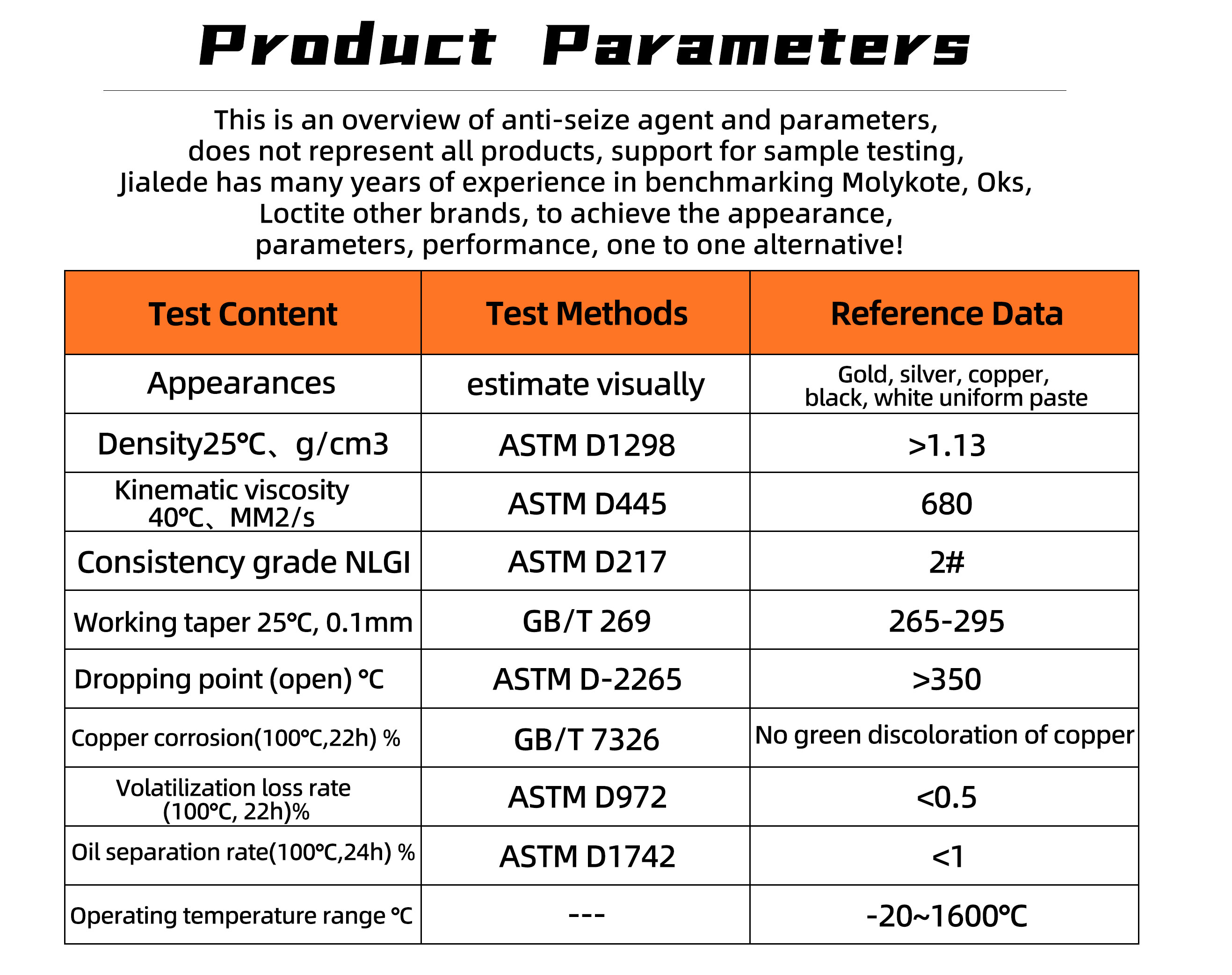

Data Sheet
Data | Test Method | YBS-9016 |
Appearance | Visual Inspection | Copper uniform paste |
Density 25℃, g/cm3 | ASTM D1298 | >1.13 |
Kinematic viscosity 40℃ MM2/s | ASTM D445 | 680 |
Consistency grade NLGI | ASTM D217 | 2#Copper |
Working cone penetration 25℃,0.1MM | GB/T 269 | 265-295 |
Dropping point(opening)℃ | ASTM D-2265 | >350 |
Copper corrosion(100℃24h) | GB/T 7326 | No green discoloration of copper sheet |
Volatile loss rate{100℃,22h},% | ASTM D972 | <0.5 |
Oil Separation Rate{100℃24h},% | ASTM D1742 | <1 |
Operating temperature range ℃ | Test Method | -20~1400℃ |
Performance Advantage
● Excellent high-temperature anti-seize performance
● High viscosity base oil
● Excellent sealing stability
● Excellent corrosion protection
● Enhanced extreme pressure and antiwear properties

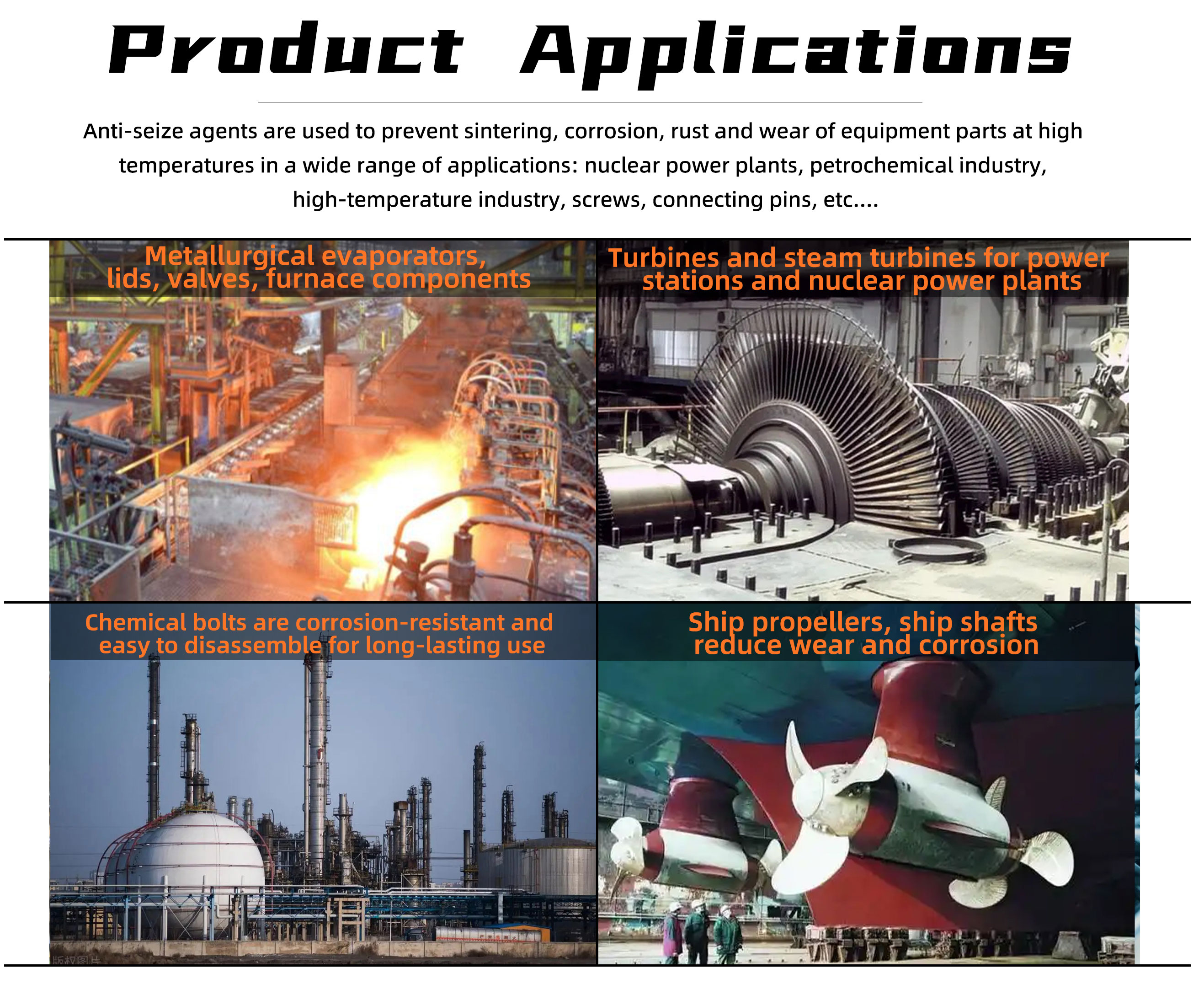

Application

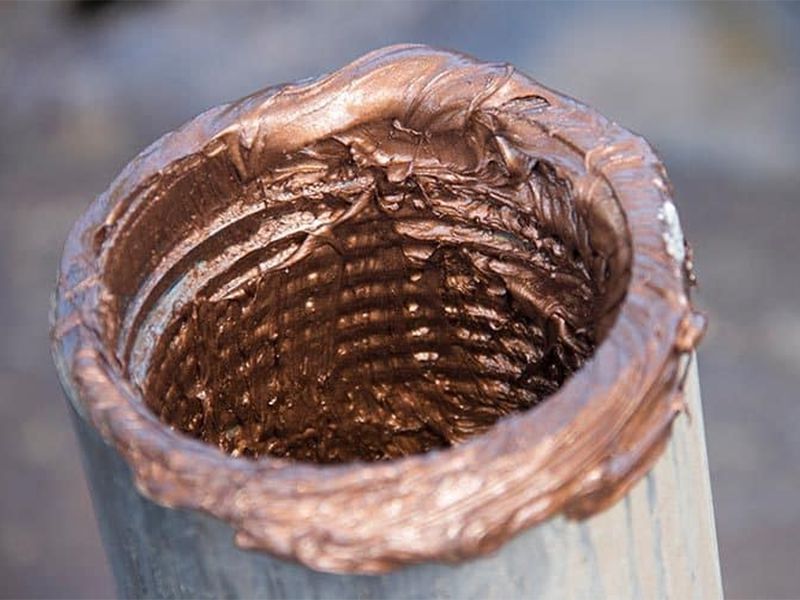

◎ Suitable for high temperature/high load, low speed sliding/oscillating parts lubrication, such as high temperature bushings, pins, bolts, flanges, shafts and joints, especially high heat load stainless steel bolted joints to prevent bonding or sticking.
◎ Lubrication of threads, flanges and seals of turbines, engines, valves, etc. that come into contact with high temperatures to prevent high-temperature seizing of metal joints.
◎ The backside of automobile brake pads to prevent sticking and seizing of brake blocks on the guide pins of automobile brake caliper slide head. Prevents corrosion between the brake pad and the slot and eliminates brake squeal.
◎ It can prevent the brake pads from heat biting and prevent water and salt erosion, enable the whole slide head device to operate accurately, the brake block to combine completely after braking and the brake disc to release the brake quickly, prolong the service life of the whole braking system of the automobile, and eliminate the noise and crushing sound when braking, especially suitable for ABS braking system.
◎ Fastening bolts, chains and low-speed rotating bearings of high-temperature and high-pressure equipments in locomotives, cement plants, ships and automobiles.
◎ It is quite widely used on steam turbines and steam wheels in power stations and nuclear power plants.
◎ It is especially ideal for use in the harshest workplaces such as furnaces, harbors, oil drilling platforms, power units and other turbines.
