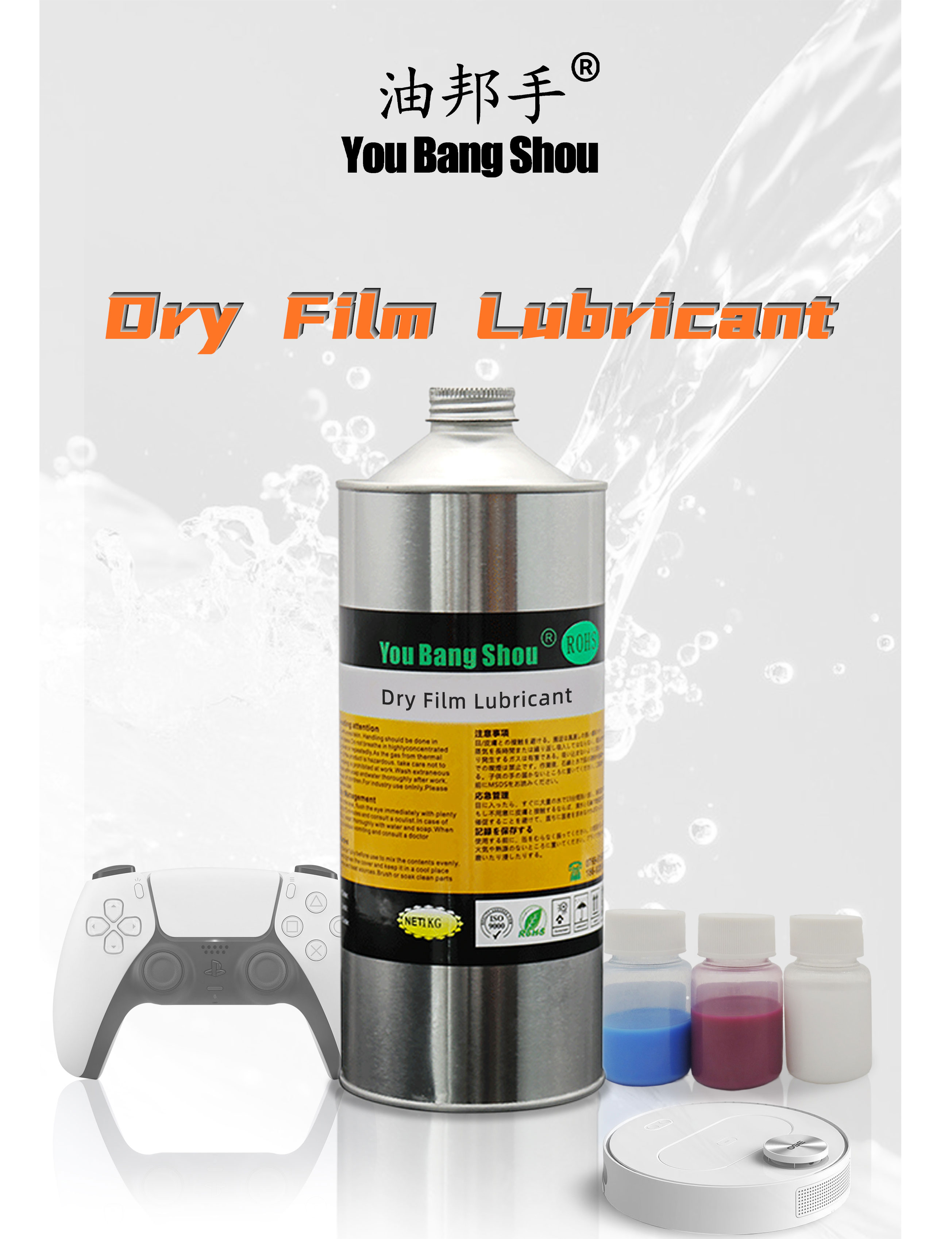

Dry Film Lubricant Replace CFD-409Z Special Lubricant For Electronic Digital Accessories

Model: CFD-409Z

YBS-409Z quick-drying lubricant is a lubricant containing polytetrafluoroethylene (PTFE) solid lubricating particles and perfluoropolyether oil, which can lubricate and clean at the same time.

After the solvent evaporates, a layer of uniform PTFE lubricating particles and perfluoropolyether oil with semi-dry temperature oil film is formed. It has a very low coefficient of friction and does not easily absorb dust.

WhatsApp

WeChat
Share:

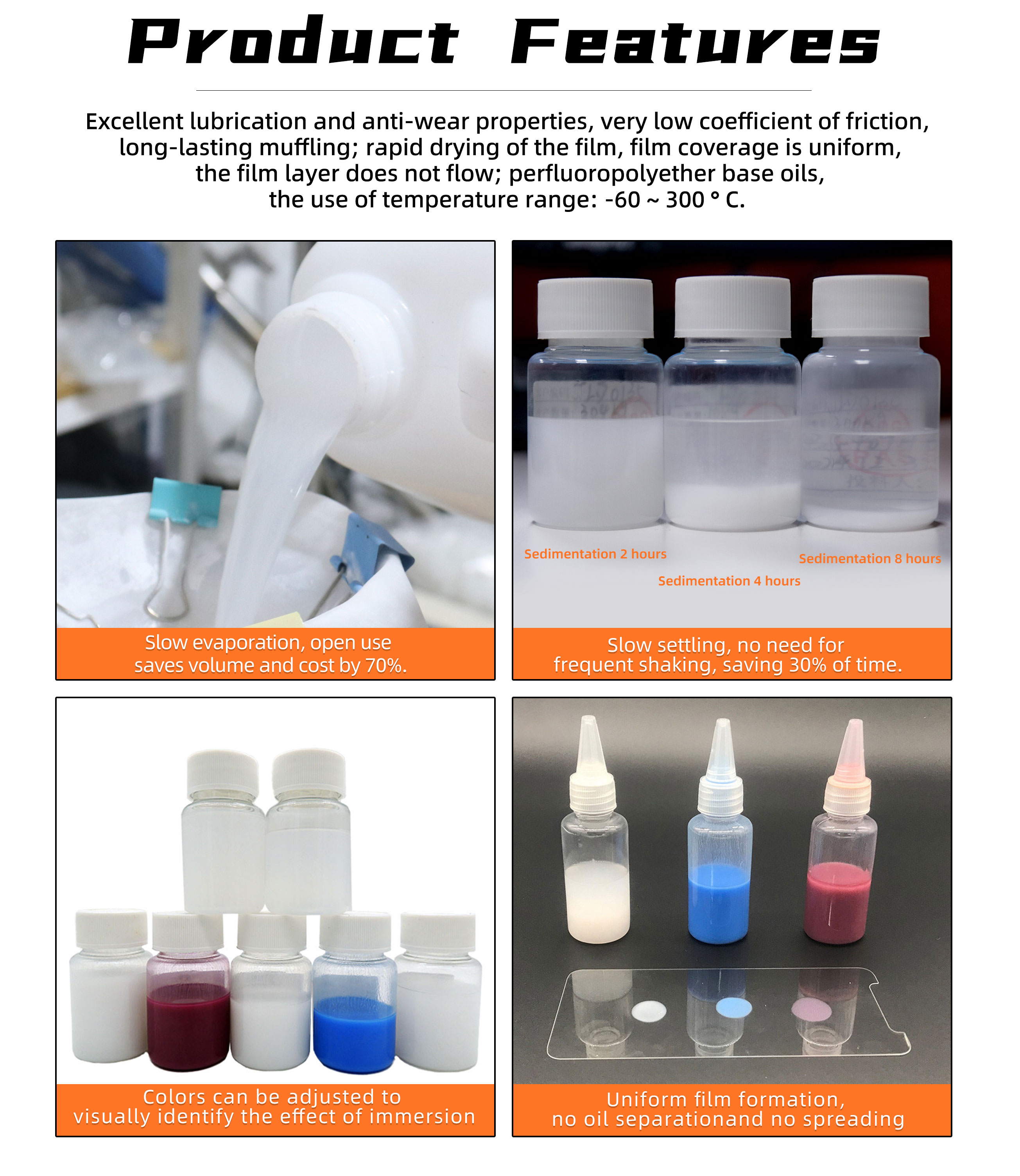

Performance Characteristics

◎ Provide long-lasting and excellent lubrication performance within the range of -40℃~180℃.

◎ No flash point, no spontaneous combustion point.

◎ No carbon deposits at high temperature.

◎ Resistant to steam, strong acid and alkali

◎ Wide material compatibility and extraordinary electrical insulation properties;

◎ Chemically inert substance, insoluble in water and most solvents Can be used with almost any engineering plastics elastomers.

◎ The load capacity is 3 times higher than ordinary lubricants.

◎ Non-ozone depletion, short drying time.

◎ Non-toxic, odorless and non-irritating.

Application

◎ For lubrication of tray slide of CD-ROM and DVD-ROM.

◎ Lubrication of telescopic lenses and internal mechanisms of cameras, video cameras and optical instruments.

◎ Friction lubrication of plastic parts where other wet lubricants are not suitable.

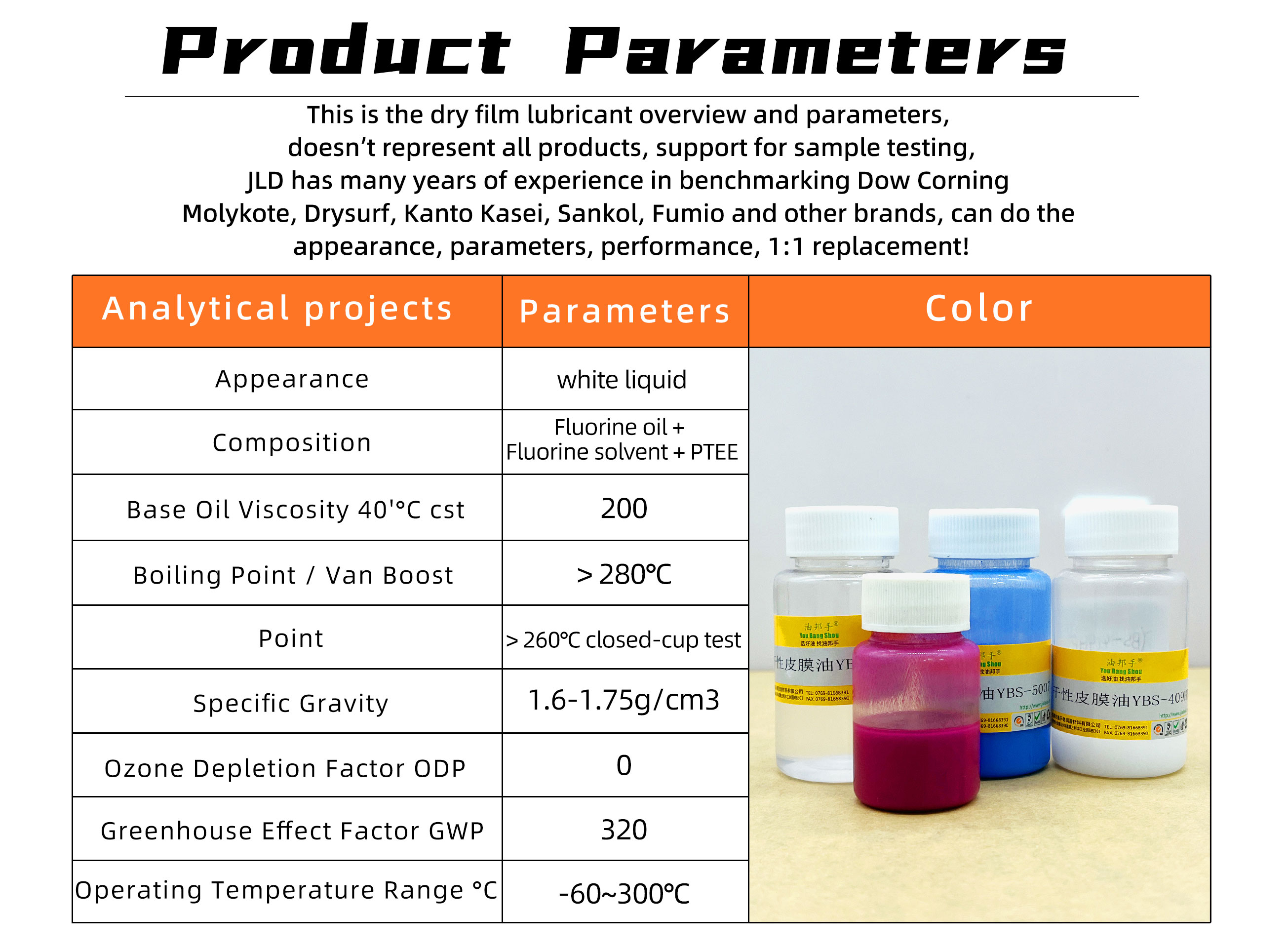

Comparison Data

Product NameYBS-409ZCFD-409Z
AppearanceMilky white liquidMilky white liquid
Specific weight1.5~1.71.5~1.7
Ignition point ℃NoneNo
SolutionFluorinated liquidFluorine inactive liquid
LubricantPTFE polytetrafluoroethyleneFluorine solid lubricant
Boiling point50-7050-70
Use temperature ℃-40~180-40~180
Concentration of active ingredientsLow concentrationLow concentration
Surface after treatmentSlightly wetted surfaceSemi-dry
Atmospheric lifetime4 years4 years
Ozone layer depletion factor ODP00
Global Warming Factor GPW320320
