Model: YBS-HT230
You Bang Shou Heat Transfer Oil
It is widely used in various temperature control and cooling systems, especially in various links of semiconductor production, such as temperature control system, data center server cooling, internal cooling of wind turbines and generator sets, heat dissipation of high voltage transformers and phased array radar, so as to achieve cooling, energy saving and consumption reduction.
Introduction
Applications
Data Sheet
| Main Properties | Technical parameters | |||
| Appearance | YBS-170 | YBS-200 | YBS-230 | YBS-270 |
| Boiling point/°C | 170 | 200 | 230 | 270 |
| Pour Point | -97 | -85 | -77 | -66 |
| Density/g-cm3 | 1.78 | 1.79 | 1.81 | 1.84 |
| Kinematic viscosity/cSt(@25°C) | 1.7 | 2.9 | 4.7 | 12.0 |
| Specific heat / J-kg '-K1 | 960 | 960 | 960 | 960 |
| Thermal conductivity/W-m q-K1 | 0.065 | 0.065 | 0.065 | 0.065 |
| Dielectric strength/kV(2.54mm) | 40 | 40 | 40 | 40 |
| Dielectric constant | <2 | <2 | <2 | <2 |
| Volume resistivity/Ohm-cm | >1.0-1015 | >1.0-1015 | >1.0-1015 | >1.0-1015 |
| Dissipation factor(1 Khz) | 2-W4 | 2-W4 | 2-W4 | 2-W4 |
| Solubitity of water/ppm(wt) | <10 | <10 | <10 | <10 |

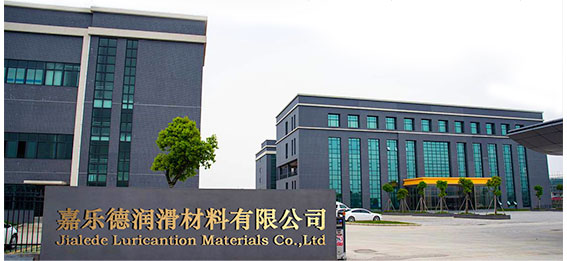

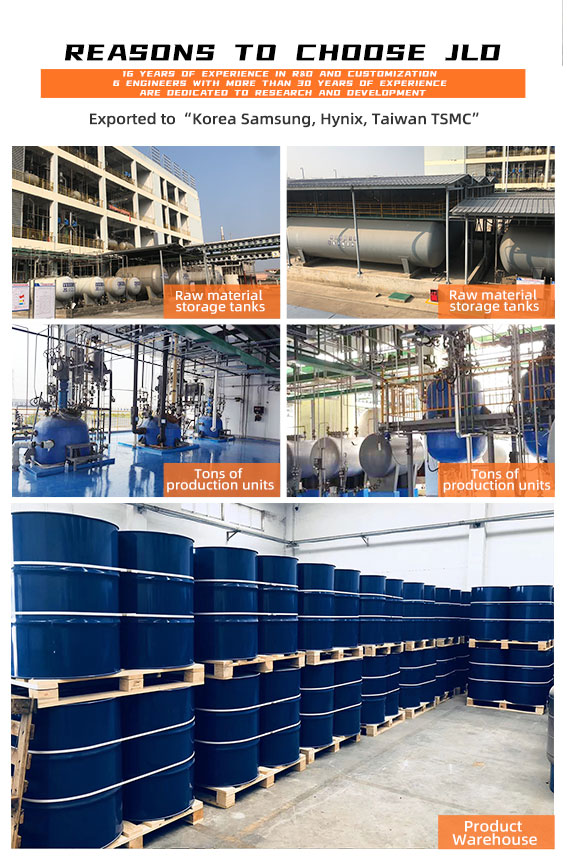

Powerful factory
