Electronic Liquid

  • the equivalent to 3M™ FC-3283

  • the equivalent to 3M™ FC-3283

  • the equivalent to 3M™ FC-3283

  • the equivalent to 3M™ FC-3283

  • the equivalent to 3M™ FC-3283

Model: YBS-3283

the equivalent to 3M™ FC-3283

This product has ideal high insulation performance, high density, and high boiling point, and can be widely used in various temperature controlled heat dissipation systems.

WhatsApp

Share:

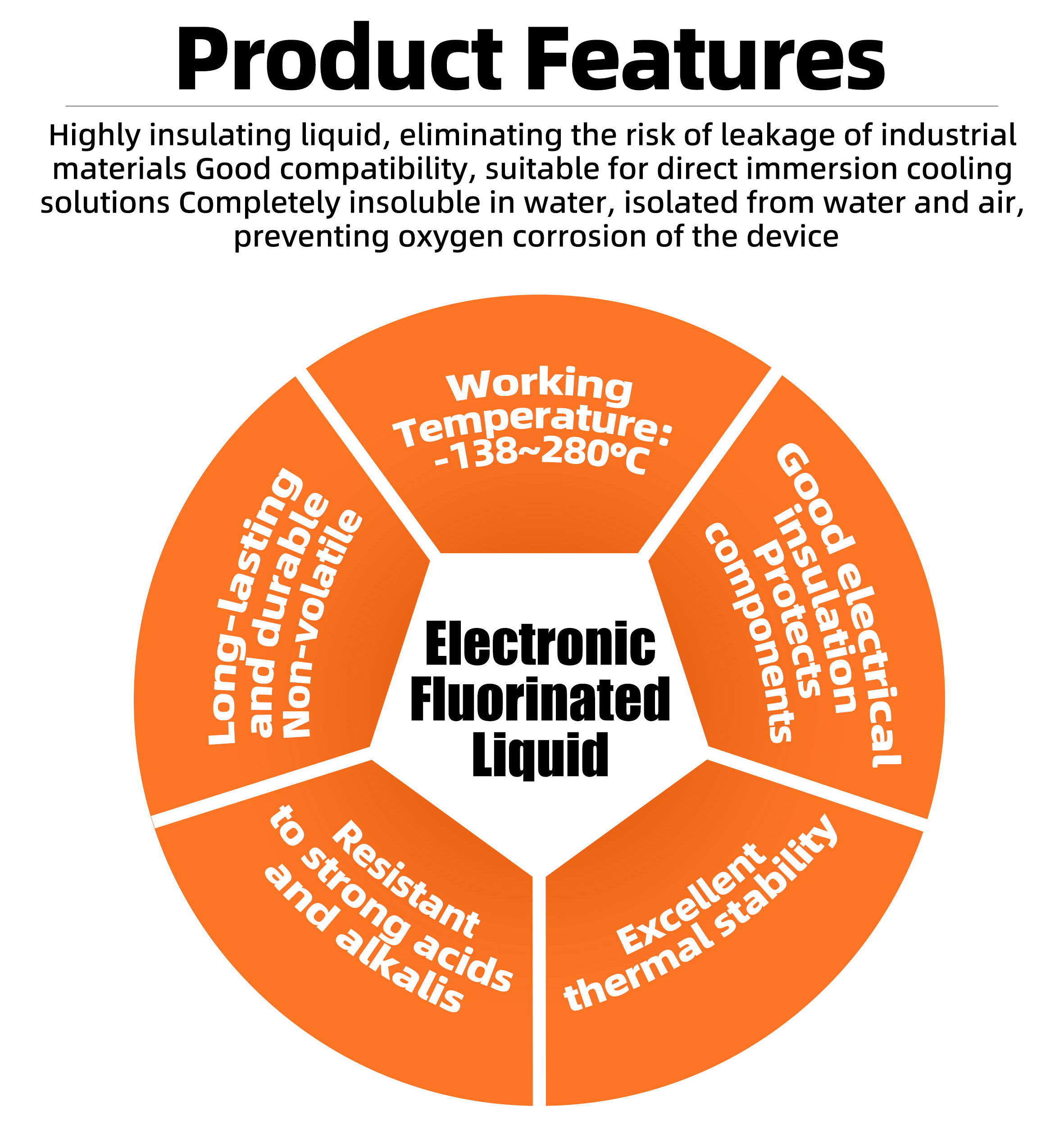

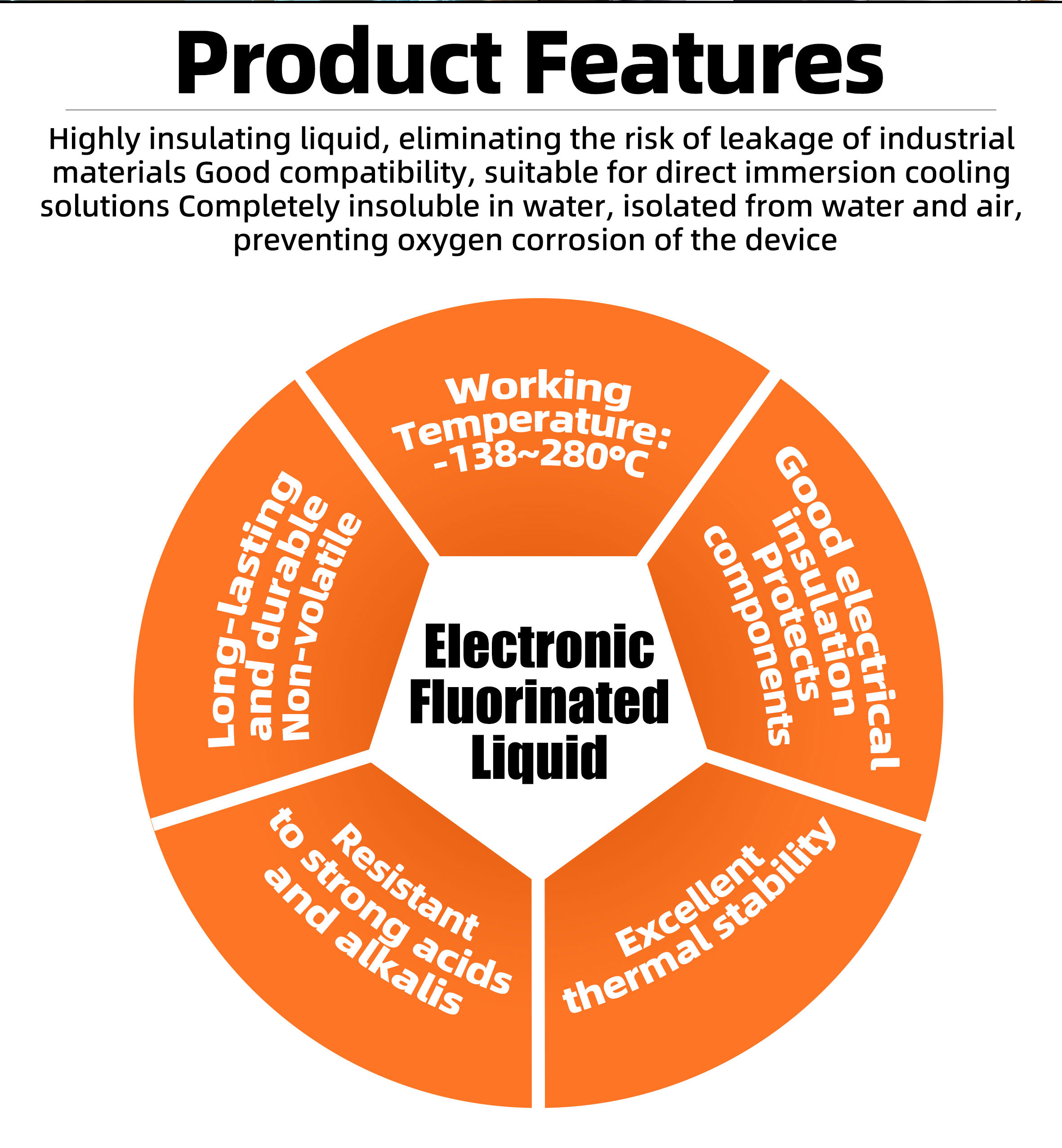

Product Features

1.It has ideal high insulation performance, high density and high boiling point, and can be widely used in various temperature-controlled heat dissipation systems.

2. Non-hazardous goods, non-flammable and non-explosive, with no ignition point and no flash point.

3. Good electrical insulation with very high breakdown voltage.

4. Low dielectric constant and dielectric loss, which do not affect signal transmission.

5. Good flowability to dissipate heat well in the temperature control system;

6. Non-toxic, non-hazardous and non-irritating.

7. Environmentally friendly, with very low GWP, ODP 0, and no ozone destruction.

8. Insoluble with water, to avoid the damage of water to the components.

the equivalent to 3M™ FC-3283

the equivalent to 3M™ FC-3283

the equivalent to 3M™ FC-3283

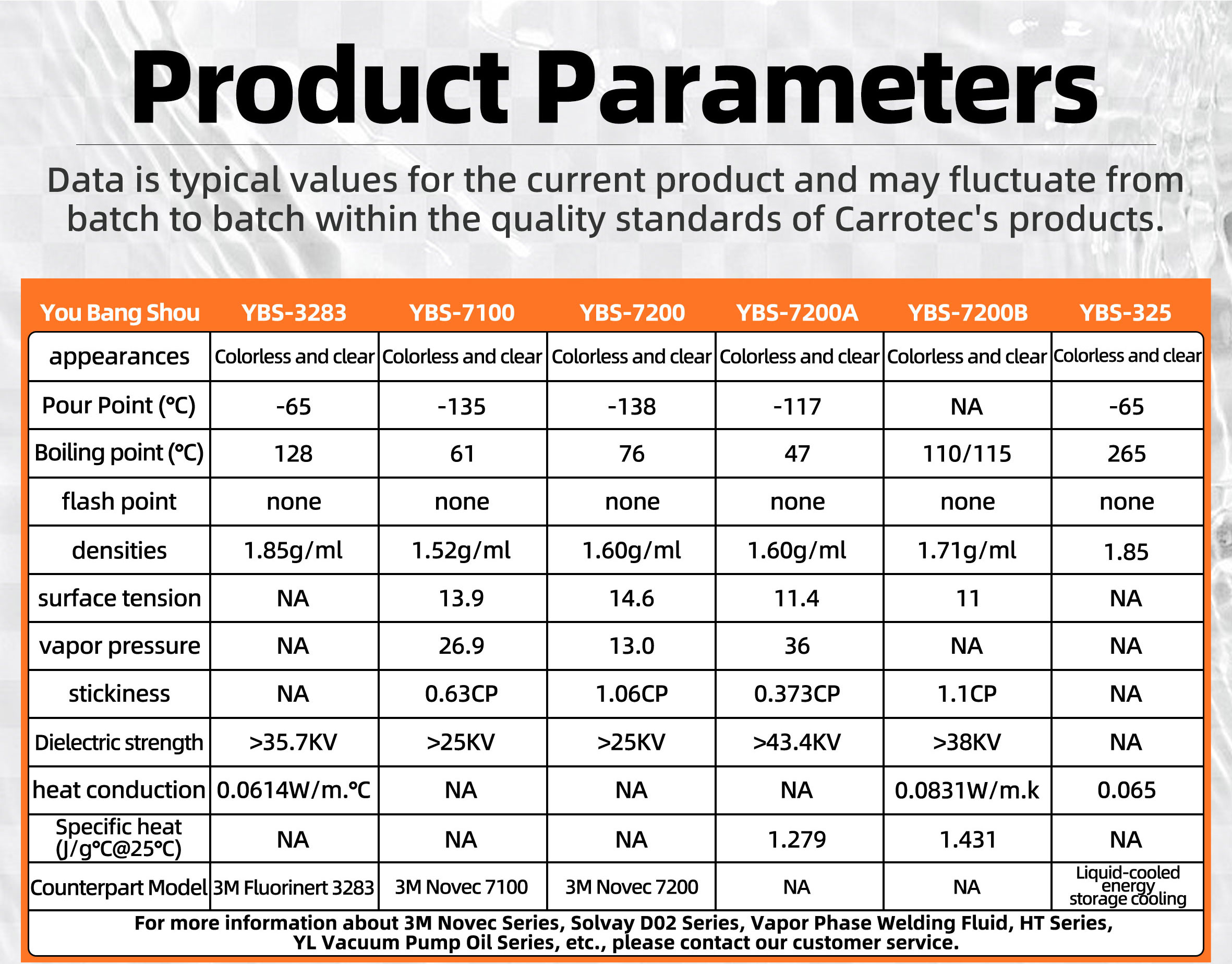

Main technical parameters of YBS-3283


ProjectParameter
AppearanceClarified, colorless
OdourOdorless
Boiling point128℃
Density (25℃)1.85g/ml
Permittivity (1MHz)2.09
Dielectric strength (2.5MM)>35.7kV
Dielectric loss (1MHz)0.00029
Surface tension15.69mN/m
Freezing point-82°C
Saturated vapor pressure (20℃)1.516kPa
Critical pressure4.28MPa
Critical temperature196.54°C
Flash PointNone
Ozone Depletion Potential (ODP)0
Global Warming Potential (GWP)108
Specific heat (25℃)1.107J/(g.K)
Thermal conductivity (25℃)0.0614W/(m.k)
Latent heat of vaporization82.8KJ/kg
Kinematic viscosity (25℃)1.376mm2/s
Volumetric resistivity (25℃)≥1×1015 Ω.mm

the equivalent to 3M™ FC-3283

the equivalent to 3M™ FC-3283


YBS-3283 Application

1. Thermal transfer cooling process for semiconductor dry etching, wafer testing, packaging, etc.

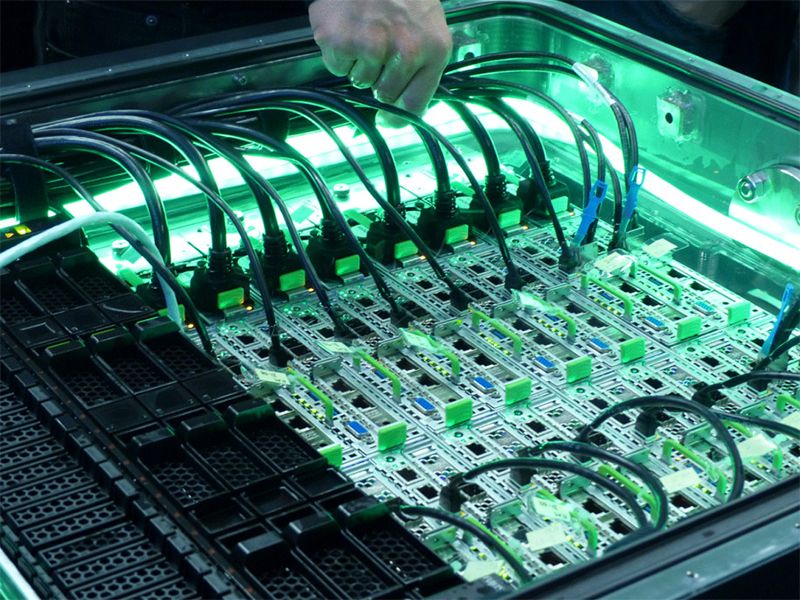

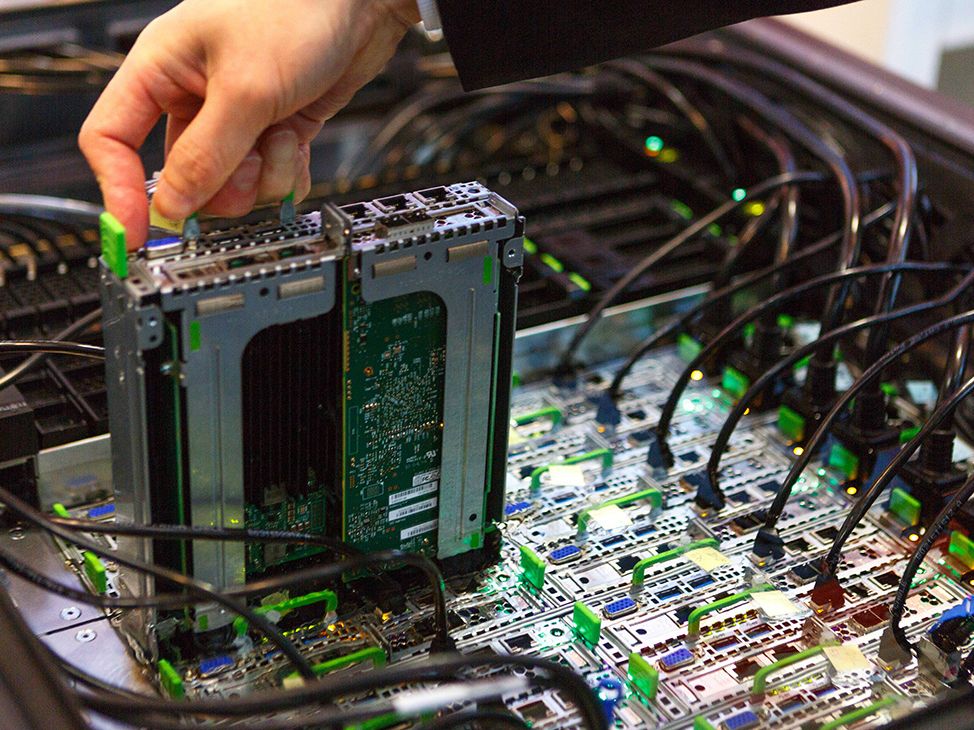

2. Thermally conductive cooling for all types of data processing electronics.

3. Cleaning and treatment agents for electronic products.

4. Synthesis of fluorinated surfactants and other fluorinated chemicals as intermediates.

the equivalent to 3M™ FC-3283

the equivalent to 3M™ FC-3283

the equivalent to 3M™ FC-3283

the equivalent to 3M™ FC-3283
